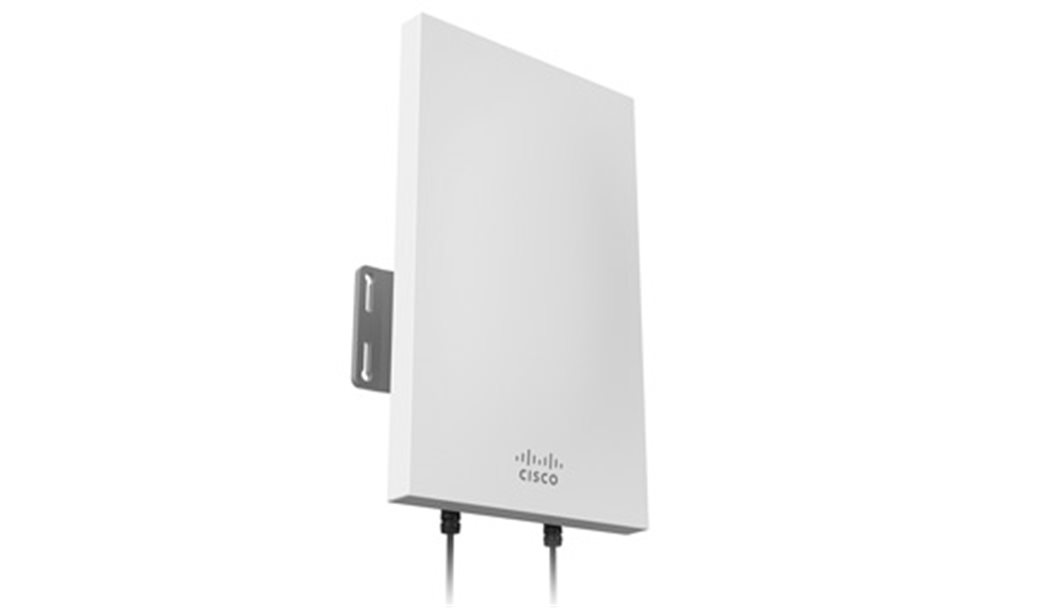

Cisco Meraki Dual Band Sector Antenna

Electrical

• Antenna type: panel
• Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
• Gain: 9 / 12 dBi
• Polarization: linear, vertical / horizontal
• Half power beamwidth / horizontal: 86° / 65°
• Half power beamwidth / vertical: 34° / 18°

Physical & Environmental

• Dimensions: 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm)
• Weight: 1.4 lbs (630 g)
• Material: UV resistant plastic
• Temperature: -40° F to 158° F (-40° C to 70° C)
• Humidity: 5 to 95% non-condensing
• Connector: 2 x N-type

Mounting

• Mounting hardware and cables included
• Mounts to walls, poles, or AP directly

Cables

• 12 inch cables with two N-type connectors included

Regulatory

• Certified for use with the MR84
